Sprinter Cab Chassis
Starting at
$54,130
*
Color
Arctic WhiteCab Chassis Lineup
2025
Cab Chassis 3500XD
Dimensions
- Overall Height:
- 94 in
- Overall Length:
- 246 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 6,433 lbs
- Max Towing:
- 7,500 lbs [1]
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 6,433 lbs
- Seating Capacity:
- 2-3
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 4,597 lbs
- Max Available GCWR:
- 15,249 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard):
- 4,081 lbs
- GAWR.F (Option):
- 4,409 lbs
- GAWR.R:
- 7,721 lbs
- Base Curb Weight (Front):
- 2,900 lbs
- Base Curb Weight (Rear):
- 1,631 lbs
- UVW:
- 10,470 lbs
- Max Tongue Weight:
- 750 lbs
- Shipping Weight, lbs.:
Measurements
- Turning Diameter (curb to curb):
- 45.3 ft
- Turning Circle (Wall to Wall):
- 48 ft
- Available Rear Axle Ratios:
- Overhang (Front):
- 15.8 in
- Overhang (Rear):
- 61.4 in
- Tire Track (Front):
- 66 in
- Tire Track (Rear):
- 64 in
- Tires & Load Ratings:
- 2,678.6
- Rim:
- HMA 125,5
- Center of Gravity X:
- Max. Height Center of Gravity Z :
- Center of Gravity Z:
- Center of Gravity Y:
- Cab To Body Clearance, cm (in):
- 8.1
- Frame Width (out. to out.), cm (in):
- 44
- Frame Height (Laden), cm (in):
- 27
- Frame Height (Unladen), cm (in):
- 32.6
- Max. Body Length, cm (in):
- Max. Body Width, cm (in):
- Max. Body Height, cm (in):
- Front Axle to Back of Cab, cm (in):
- Cab to Axle, cm (in):
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cab Chassis 3500XD
Dimensions
- Overall Height:
- 98 in
- Overall Length:
- 246 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 6,169 lbs
- Max Towing:
- 7,500 lbs [1]
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 6,169 lbs
- Seating Capacity:
- 2-3
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 4,861 lbs
- Max Available GCWR:
- 15,249 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard):
- 4,081 lbs
- GAWR.F (Option):
- 4,409 lbs
- GAWR.R:
- 7,721 lbs
- Base Curb Weight (Front):
- 2,900 lbs
- Base Curb Weight (Rear):
- 1,631 lbs
- UVW:
- 10,470 lbs
- Max Tongue Weight:
- 750 lbs
- Shipping Weight, lbs.:
Measurements
- Turning Diameter (curb to curb):
- 45.3 ft
- Turning Circle (Wall to Wall):
- 48 ft
- Available Rear Axle Ratios:
- Overhang (Front):
- 15.8 in
- Overhang (Rear):
- 61.4 in
- Tire Track (Front):
- 66 in
- Tire Track (Rear):
- 64 in
- Tires & Load Ratings:
- 2,678.6
- Rim:
- HMA 125,5
- Center of Gravity X:
- Max. Height Center of Gravity Z :
- Center of Gravity Z:
- Center of Gravity Y:
- Cab To Body Clearance, cm (in):
- 8.1
- Frame Width (out. to out.), cm (in):
- 44
- Frame Height (Laden), cm (in):
- 27
- Frame Height (Unladen), cm (in):
- 32.6
- Max. Body Length, cm (in):
- Max. Body Height, cm (in):
- Max. Body Width, cm (in):
- Front Axle to Back of Cab, cm (in):
- Cab to Axle, cm (in):
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cab Chassis 4500
Dimensions
- Overall Height:
- 94 in
- Overall Length:
- 246 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 7,506 lbs
- Max Towing:
- 7,500 lbs [1]
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 7,506 lbs
- Seating Capacity:
- 2-3
- Max Available GVWR:
- 12,125 lbs
- Base Curb Weight:
- 4619 lbs
- Max Available GCWR:
- 15,249 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Rear):
- 1,605 lbs
- Base Curb Weight (Front):
- 2,981 lbs
- Max Tongue Weight:
- 750 lbs
- Shipping Weight, lbs.:
- UVW:
- 11,373 lbs
- GAWR.R:
- 7,721 lbs
- GAWR.F (Option):
- 4,409 lbs
- GAWR.F (Standard):
- 4,081 lbs
Measurements
- Turning Diameter (curb to curb):
- 45.3 ft
- Turning Circle (Wall to Wall):
- 48 ft
- Available Rear Axle Ratios:
- Overhang (Front):
- 15.8 in
- Overhang (Rear):
- 61.4 in
- Tire Track (Front):
- 66.3 in
- Tire Track (Rear):
- 60.7 in
- Tires & Load Ratings:
- 3,196.7
- Rim:
- ET54
- Max. Height Center of Gravity Z :
- Center of Gravity X:
- Center of Gravity Z:
- Center of Gravity Y:
- Cab To Body Clearance, cm (in):
- 8
- Frame Width (out. to out.), cm (in):
- 44
- Frame Height (Laden), cm (in):
- 26.9
- Frame Height (Unladen), cm (in):
- 32.4
- Max. Body Length, cm (in):
- Max. Body Width, cm (in):
- Max. Body Height, cm (in):
- Front Axle to Back of Cab, cm (in):
- Cab to Axle, cm (in):
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
2025
Cab Chassis 3500XD
Dimensions
- Overall Height:
- 94 in
- Overall Length:
- 273 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- : 4-Cylinder Diesel High Output
- Payload Capacity:
- 6,345 lbs
- Max Towing:
- 7,500 lbs [1]
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 6,345 lbs
- Seating Capacity:
- 2-3
- Max Available GVWR:
- 11,030 lbs
- Base Curb Weight:
- 4,685 lbs
- Max Available GCWR:
- 15,249 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard):
- 4,081 lbs
- GAWR.F (Option):
- 4,409 lbs
- GAWR.R:
- 7,721 lbs
- Base Curb Weight (Front):
- 3,095 lbs
- Base Curb Weight (Rear):
- 1,667 lbs
- Shipping Weight, lbs.:
- Max Tongue Weight:
- 750 lbs
- UVW:
- 10,470 lbs
Measurements
- Turning Diameter (curb to curb):
- 45.3 ft
- Turning Circle (Wall to Wall):
- 48 ft
- Available Rear Axle Ratios:
- Overhang (Front):
- 15.8 in
- Overhang (Rear):
- 61.4 in
- Tire Track (Front):
- 66 in
- Tire Track (Rear):
- 64 in
- Tires & Load Ratings:
- 2,678.6
- Rim:
- HMA 125,5
- Center of Gravity X:
- Max. Height Center of Gravity Z :
- Center of Gravity Z:
- Center of Gravity Y:
- Cab To Body Clearance, cm (in):
- 8.1
- Frame Width (out. to out.), cm (in):
- 44
- Frame Height (Laden), cm (in):
- 27
- Frame Height (Unladen), cm (in):
- 32.6
- Max. Body Length, cm (in):
- Max. Body Width, cm (in):
- Max. Body Height, cm (in):
- Front Axle to Back of Cab, cm (in):
- Cab to Axle, cm (in):
Powertrain
- Engine:
- : 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Cab Chassis 4500
Dimensions
- Overall Height:
- 94 in
- Overall Length:
- 273 in
- Overall Width with mirrors:
- 96 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 7,418 lbs
- Max Towing:
- 7,500 lbs [1]
- Seating Capacity:
- 2-3
Capacity
- Payload Capacity:
- 7,418 lbs
- Seating Capacity:
- 2-3
- Max Available GVWR:
- 12,125 lbs
- Base Curb Weight:
- 4,707 lbs
- Max Available GCWR:
- 15,249 lbs
- Max Towing:
- 7,500 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard):
- 4,630 lbs
- GAWR.F (Option):
- 4,630 lbs
- GAWR.R:
- 7,934 lbs
- Base Curb Weight (Front):
- 3,110 lbs
- Base Curb Weight (Rear):
- 1,674 lbs
- Max Tongue Weight:
- 750 lbs
- UVW:
- 11,373 lbs
- Shipping Weight, lbs.:
Measurements
- Turning Diameter (curb to curb):
- 52.5 ft
- Frame Height (Unladen), cm (in):
- 32.3
- Turning Circle (Wall to Wall):
- 55 ft
- Available Rear Axle Ratios:
- Overhang (Front):
- 15.8 in
- Overhang (Rear):
- 63 in
- Tire Track (Front):
- 66.3 in
- Tire Track (Rear):
- 60.7 in
- Tires & Load Ratings:
- 2,678.6
- Rim:
- HMA 125,5
- Center of Gravity X:
- Max. Height Center of Gravity Z :
- Center of Gravity Y:
- Center of Gravity Z:
- Cab To Body Clearance, cm (in):
- 8
- Frame Height (Laden), cm (in):
- 26.9
- Frame Width (out. to out.), cm (in):
- 44
- Max. Body Length, cm (in):
- Max. Body Height, cm (in):
- Max. Body Width, cm (in):
- Front Axle to Back of Cab, cm (in):
- Cab to Axle, cm (in):
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Key Features
More Than a Van
Upfit Your Sprinter with Mercedes-Benz ExpertSOLUTIONS
No van upfits like a Mercedes-Benz Sprinter. Whether for business or pleasure, Mercedes-Benz vans offer superior capabilities designed to fit your needs, no matter what they may be.

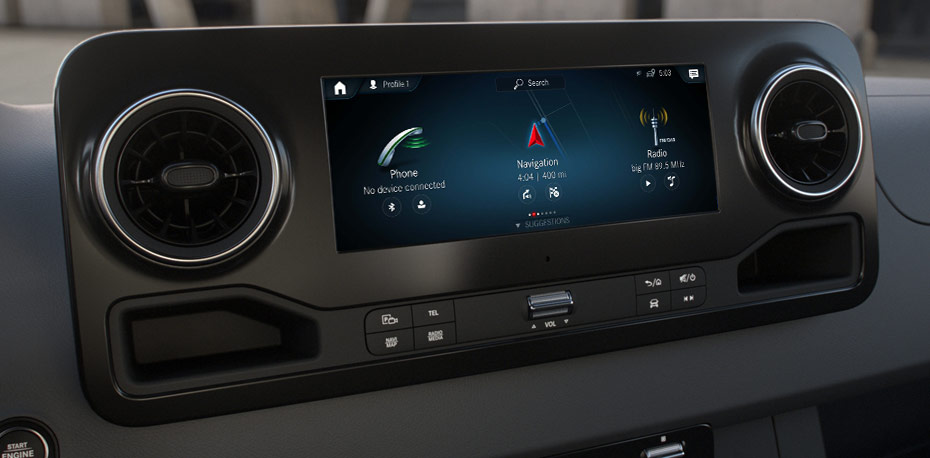

Connected Technology for Your Sprinter

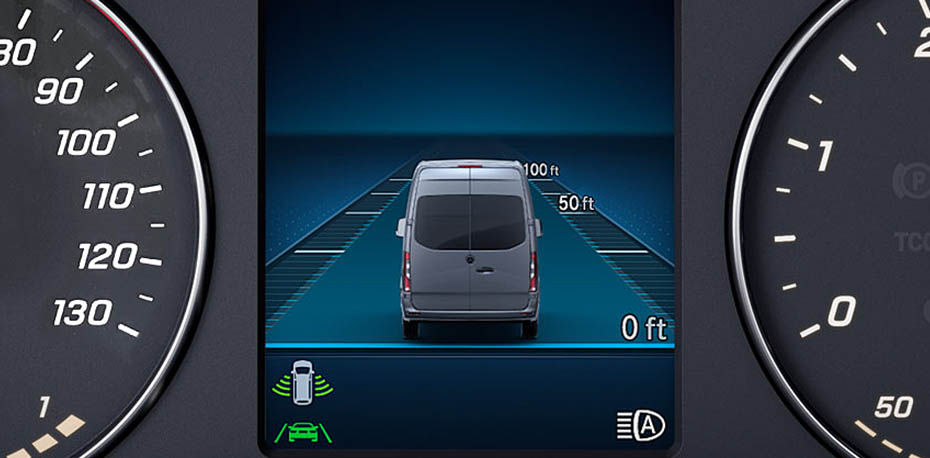

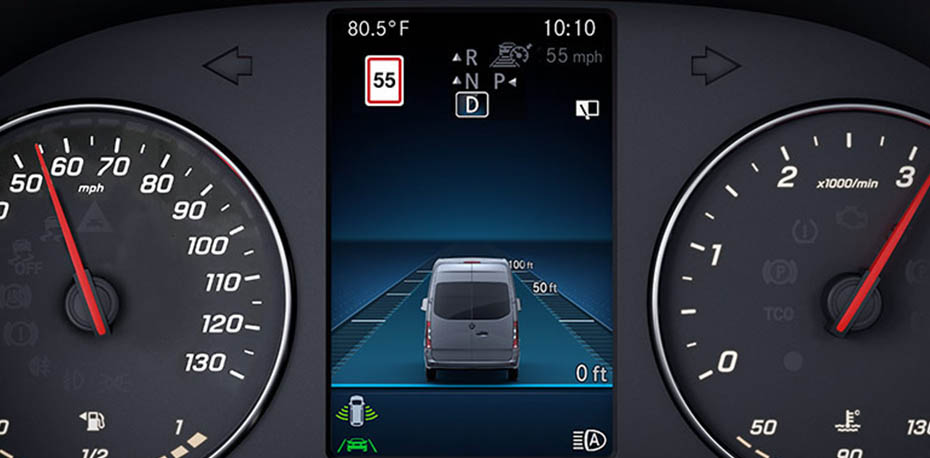

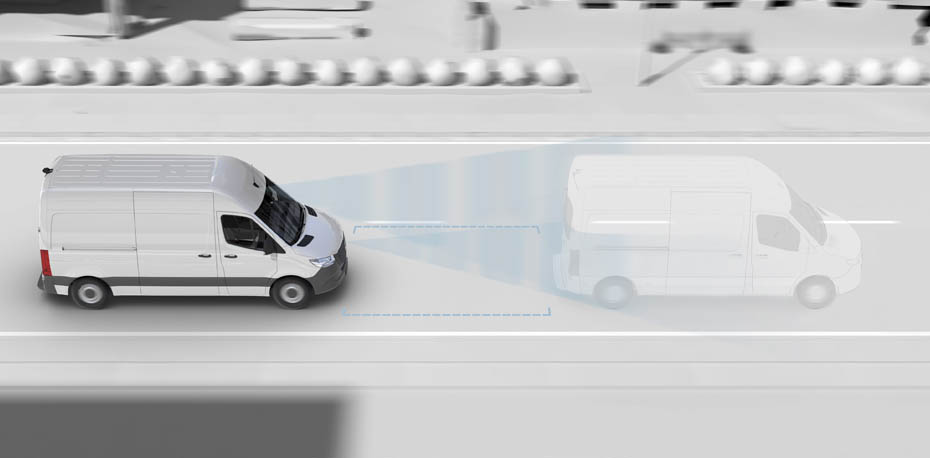

With technology like Active Brake Assist, rear-view camera display, multimedia touch-screen control and more, you’ll be taking to the road with ease. And when you connect drivers, vehicles, and managers with Mercedes me connect, you can push your business even further.[3][4]
