Sprinter Passenger Van
Starting at
$56,930
*
Color
Arctic WhitePassenger Van Lineup
2025
Passenger Van 2500
Dimensions
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
Key Features
- Engine:
- 4-Cylinder Diesel Standard Output
- Payload Capacity:
- 3,307 lbs
- Max Towing:
- 5,000 lbs [1]
- Seating Capacity:
- 12
Capacity
- Seating Capacity:
- 12
- Cargo Volume:
- 70 cu. ft.
- Max Available GVWR:
- 9,050 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Payload Capacity:
- 3,307 lbs
- Base Curb Weight:
- 5,743 lbs
- Base Curb Weight (Front), lbs.:
- 2,699 lbs
- UVW, lbs.:
- 3,357 Ibs
- Base Curb Weight (Rear), lbs.:
- 3,044 lbs
- Max. Tongue Weight, lbs.:
- 500 Ibs
- GAWR.F (Standard), lbs.:
- 1,860 Ibs
- GAWR.F (Option), lbs.:
- 2,000 Ibs
- GAWR.R, lbs.:
- 2,431 Ibs
Measurements
- Cargo Bed Length:
- 36 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 21 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 36 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Overhang (Front), in:
- 40 in
- Overhang (Rear), in:
- 49 in
- Tire Track (Front), in:
- 67.2 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- 1715
- Center of Gravity Z, in:
- 275
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- TBD
- Tires & Load Ratings:
- 3,086
- Interior Height:
- 64 in
Powertrain

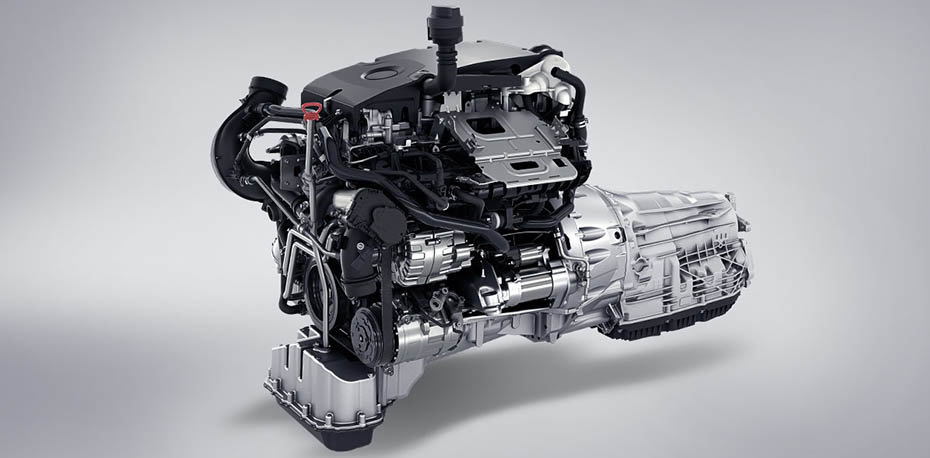

- Engine:
- 4-Cylinder Diesel Standard Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 170 hp
- Rated Torque:
- 295 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Passenger Van 2500
Dimensions
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
- Overall Height:
- 103 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 3,307 lbs
- Max Towing:
- 5,000 lbs [1]
- Seating Capacity:
- 12
Capacity
- Seating Capacity:
- 12
- Cargo Volume:
- 70 cu. ft.
- Max Available GVWR:
- 9,050 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Payload Capacity:
- 3,307 lbs
- GAWR.F (Standard):
- 1,,860 lbs
- GAWR.F (Option):
- 2,000 lbs
- GAWR.R:
- 2,431 lbs
- Base Curb Weight (Front):
- 2,525 lbs
- Base Curb Weight (Rear):
- 2,964 lbs
- UVW:
- 3,357 lbs
- Max Tongue Weight:
- 500 lbs
- Shipping Weight, lbs.:
- TBD
Measurements
- Cargo Bed Length:
- 36 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 20 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 36 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Turning Circle (Wall to Wall):
- 44 ft
- Overhang (Front):
- 40 in
- Available Rear Axle Ratios:
- TBD
- Overhang (Rear):
- 49 in
- Tire Track (Front):
- 67.2 in
- Tire Track (Rear):
- 68.2 in
- Tires & Load Ratings:
- 3,086
- Rim:
- ET54
- Center of Gravity X:
- TBD
- Center of Gravity Y:
- TBD
- Max. Height Center of Gravity Z :
- TBD
- Loading Area:
- TBD
- Center of Gravity Z:
- TBD
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Passenger Van 2500
Dimensions
- Overall Length:
- 234 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 144 in
- Overall Height:
- 106 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output AWD
- Payload Capacity:
- 3,020 lbs
- Max Towing:
- 5,000 lbs [1]
- Seating Capacity:
- 12
Capacity
- Seating Capacity:
- 12
- Cargo Volume:
- 70 cu ft
- Max Available GVWR:
- 9,050 lbs
- Base Curb Weight:
- 6030 lbs
- Max Available GCWR:
- 13,930 lbs
- Max Towing:
- 5,000 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- Payload Capacity:
- 3,020 lbs
- Shipping Weight:
- GAWR.F (Standard):
- 2,000 lbs
- GAWR.F (Option):
- NA
- GAWR.R:
- 2,431 lbs
- Base Curb Weight (Front):
- 2,470 lbs
- Base Curb Weight (Rear):
- 3,019 lbs
- UVW:
- 3,357 lbs
- Max Tongue Weight:
- 500 lbs
Measurements
- Cargo Bed Length:
- 36 in
- Turning Diameter (curb to curb):
- 45 ft
- Ground To First Step-Side:
- 24 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 36 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- TBD
- Turning Circle (Wall to Wall):
- 46 ft
- Max. Height Center of Gravity Z :
- Center of Gravity X:
- Center of Gravity Y:
- Center of Gravity Z:
- Rim:
- ET54
- Tires & Load Ratings:
- 3,197
- Tire Track (Rear):
- 68.2 in
- Overhang (Front):
- 40 in
- Overhang (Rear):
- 49 in
- Tire Track (Front):
- 67.8 in
- Interior Height:
- 64 in
- Available Rear Axle Ratios:
- TBD
Powertrain
- Engine:
- 4-Cylinder Diesel High Output AWD
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
2025
Passenger Van 2500
Dimensions
- Overall Height:
- 113 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel Standard Output
- Payload Capacity:
- 3,109 lbs
- Max Towing:
- 0 lbs
- Standing Height:
- 75.5
- Seating Capacity:
- 15
Capacity
- Payload Capacity:
- 3,109 lbs
- Seating Capacity:
- 15
- Cargo Volume:
- 117cu ft
- Max Available GVWR:
- 9,480 lbs
- Base Curb Weight:
- 6,371 lbs
- Max Available GCWR:
- 9,480 lbs
- Max Towing:
- 0 lbs
- Fuel Tank Capacity:
- 24.5 gal
- Base Curb Weight (Front), lbs.:
- 2,634 lbs
- UVW, lbs.:
- 3,357 Ibs
- Base Curb Weight (Rear), lbs.:
- 3,219 lbs
- Max. Tongue Weight, lbs.:
- NA
- GAWR.F (Option), lbs.:
- 2,000 Ibs
- GAWR.F (Standard), lbs.:
- 1,860 Ibs
- GAWR.R, lbs.:
- 2,431 Ibs
Measurements
- Standing Height:
- 75.5
- Cargo Bed Length:
- 48 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 20 in
- Load height, unloaded (ground to cargo floor):
- 27 in
- Door Opening-Side(Height):
- 71 in
- Door Opening-Rear(Height):
- 72 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 48 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Loading Area:
- TBD
- Turning Circle (Wall to Wall):
- 50 ft
- Available Rear Axle Ratios****:
- TBD
- Overhang (Rear), in:
- 64 in
- Tire Track (Front), in:
- 67.2 in
- Overhang (Front), in:
- 40 in
- Tire Track (Rear), in:
- 68.2 in
- Rim:
- ET54
- Center of Gravity X, in:
- TBD
- Center of Gravity Z, in:
- TBD
- Max. Height Center of Gravity Z , in:
- TBD
- Center of Gravity Y, in:
- Interior Height:
- 76 in
- Tires & Load Ratings:
- 3,197
Powertrain
- Engine:
- 4-Cylinder Diesel Standard Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 170 hp
- Rated Torque:
- 295 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Passenger Van 2500
Dimensions
- Overall Height:
- 113 in
- Overall Length:
- 274 in
- Overall Width with mirrors:
- 92 in
- Wheelbase:
- 170 in
Key Features
- Engine:
- 4-Cylinder Diesel High Output
- Payload Capacity:
- 3,109 lbs
- Max Towing:
- 0 lbs [1]
- Standing Height:
- 75.5
- Seating Capacity:
- 15
Capacity
- Payload Capacity:
- 3,109 lbs
- Seating Capacity:
- 15
- Cargo Volume:
- 117 cu ft
- Max Available GVWR:
- 9,480 lbs
- Base Curb Weight:
- 6,371 lbs
- Max Available GCWR:
- 9480 lbs
- Max Towing:
- 0 lbs [1]
- Fuel Tank Capacity:
- 24.5 gal
- GAWR.F (Standard):
- 1,860 lbs
- GAWR.F (Option):
- 2,000 lbs
- GAWR.R:
- 2,431 lbs
- Base Curb Weight (Front):
- 2,634 lbs
- Base Curb Weight (Rear):
- 3,219 lbs
- UVW:
- 3,357 lbs
- Max Tongue Weight:
- NA
- Shipping Weight, lbs.:
- TBD
Measurements
- Standing Height:
- 75.5
- Cargo Bed Length:
- 48 in
- Turning Diameter (curb to curb):
- 52 ft
- Ground To First Step-Side:
- 20 in
- Load height, unloaded (ground to cargo floor):
- 27 in
- Door Opening-Side(Height):
- 71 in
- Door Opening-Rear(Height):
- 72 in
- Dual Door Width-Side:
- 51 in
- Door Width-Rear:
- 61 in
- Max. Cargo Bed Length:
- 48 in
- Cargo Width at Wheelhouse:
- 53 in
- Max Width at Floor:
- 70 in
- Available Rear Axle Ratios:
- TBD
- Overhang (Front):
- 40 in
- Turning Circle (Wall to Wall):
- 50 ft
- Overhang (Rear):
- 64 in
- Tire Track (Rear):
- 68.2 in
- Tires & Load Ratings:
- 3,197
- Rim:
- ET54
- Tire Track (Front):
- 67.2 in
- Center of Gravity X:
- TBD
- Center of Gravity Z:
- TBD
- Center of Gravity Y:
- TBD
- Max. Height Center of Gravity Z :
- TBD
- Loading Area:
- TBD
Powertrain
- Engine:
- 4-Cylinder Diesel High Output
- Fuel Type:
- Diesel
- Displacement:
- 1950 cc
- Horsepower:
- 211 hp
- Rated Torque:
- 332 lb-ft
- Transmission:
- Automatic Transmission, 9G-TRONIC
- Drive Shaft:
- RWD
- Emission Certification:
- SULEV
- Injection:
- Common-rail direct injection (CDI)
Key Features
More Than a Van
Upfit Your Van with Mercedes-Benz ExpertSOLUTIONS
No van upfits like a Mercedes-Benz Sprinter van. Whether for business or pleasure, Mercedes-Benz vans offer superior capabilities designed to fit your needs, no matter what they may be.
Connected Technology for Your Sprinter

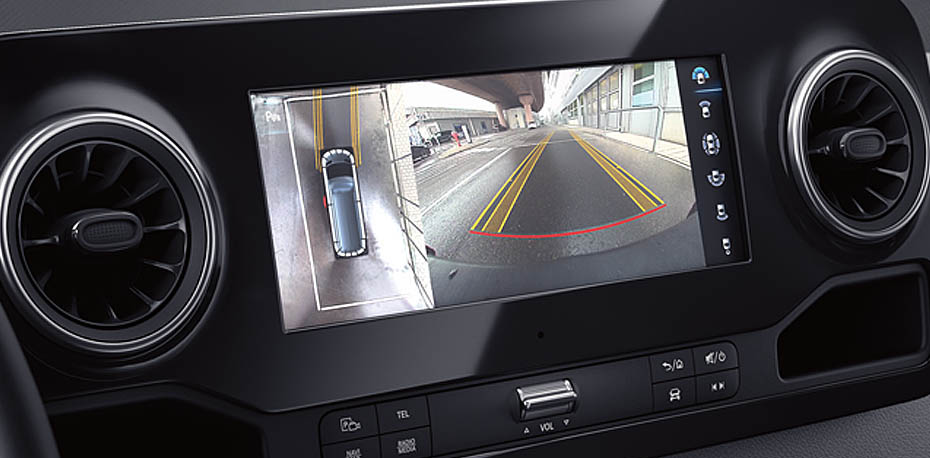

With technology like Active Brake Assist, rear-view camera display, multimedia touch-screen control and more, you’ll be taking to the road with ease. And when you connect drivers, vehicles, and managers with Mercedes me connect, you can push your business even further.[3][4]
